DI BOX PASSIVE 2CH PROEL D20P

DI Boxes perform several important functions: they are designed for impedance matching and balancing the signal of a guitar, a keyboard or any line-level output source, and for injecting directly the signal with very long connections to the XLR microphone inputs of a mixing console.

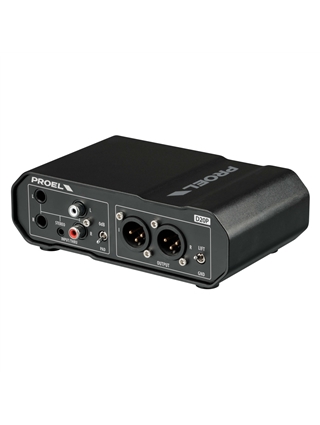

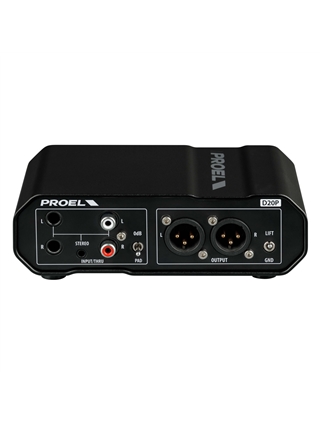

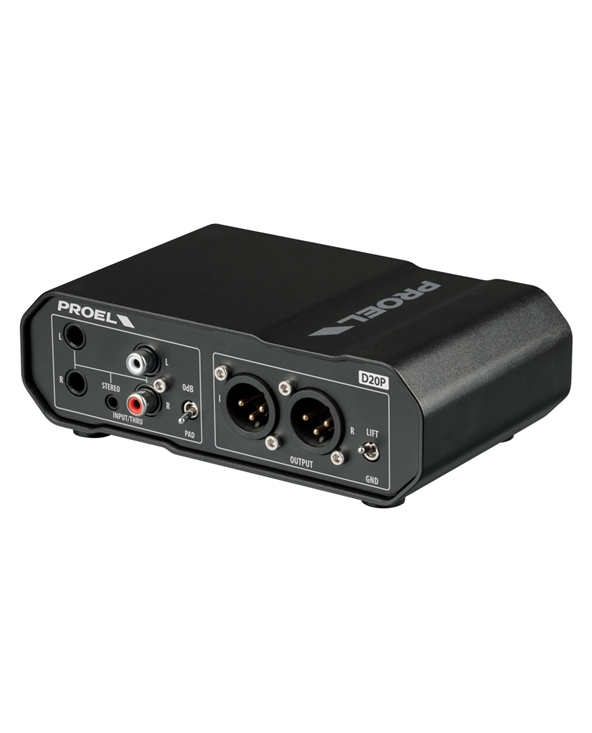

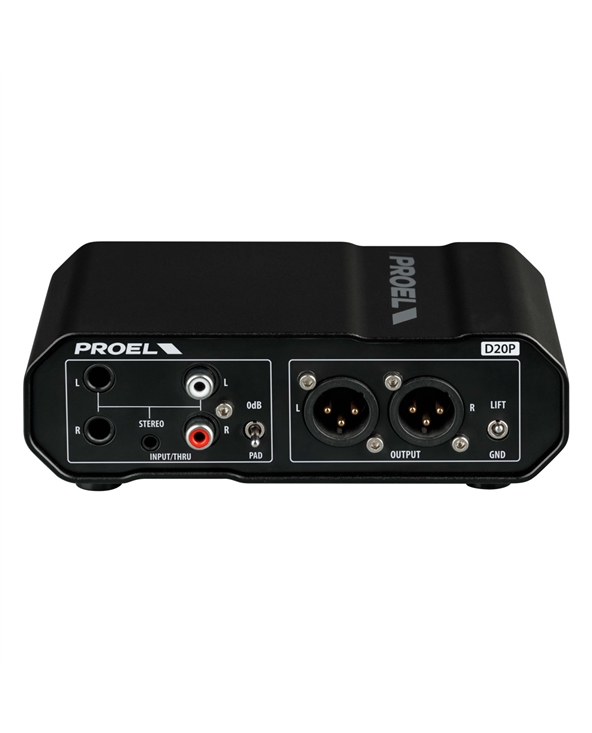

D20P is a STEREO passive direct box with transformers and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common-mode noise, like hum, is possible. D20P features two 1/4" jack to connect a stereo keyboard, or two RCA to connect a DJ console, or a 3,5mm mini-jack to connect a personal computer, for maximum flexibility without the need of special adapters.

Connectors: 1 x 1/4" Jack unbalanced
Input Impedance: 250k Ohm (no PAD) / 10k Ohm (with PAD)
Max Input Level: +20dBu )no PAD) / + 40 dBu (with PAD)
Connector: XLR-M balanced
Min. load impedance: 600 Ohms or greater
Output: Transformer Balanced (fully isolated)
Max Output Level: 0dBu
Distortion: THD+N 0.007dBu
Frequency Response: 10Hz to 100kHz (-3dB)
Insertion Loss: -20dB
Controls: PAD -20 dB, GND LIFT
Dimensions (WxHxD): 160x52x106mm
Weight: 0.59kg
