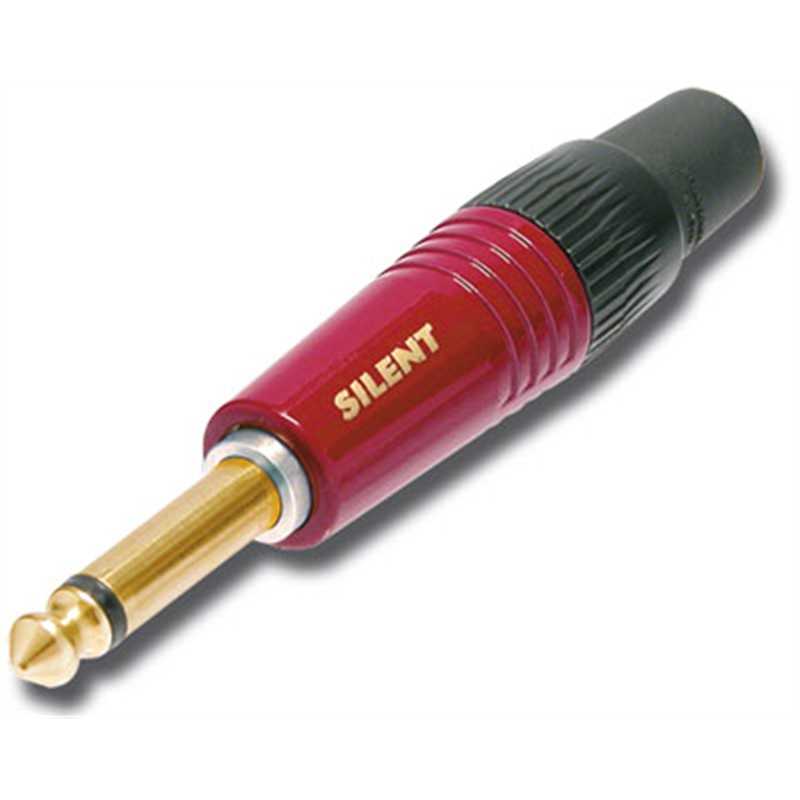

FICHA JACK NEUTRIK SILENT NP2CSILE

"2 Pole 1/4 Professional Phone Plug
• Gender: Male
• Contact Resistance: Depends on Mating Connector mOhms
• Dielectric Strength: 1 kVdc
• Insulation Resistance: > 2 GOhms (initial)
• Insulation Resistance: 1 GOhms (after damp heat test)
• Rated Current per Contact: 15 A
• Cable O.D.: 4 - 7 mm
• Wire Size: 1 mm2
• Wire Size: 18 AWG
• Wiring: Solder Contacts
• Bushing: Polyacetal (POM) + PU
• Contact Plating: 0.2 mAu
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Plating: Red Coated
• Strain Relief: Polyacetal (POM)
• Standard Comppliance: IEC 60603-11 / EIA RS-453
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -20 C to +65 C
Our Price
6,3mm Jack

Neutrik silentPLUG
