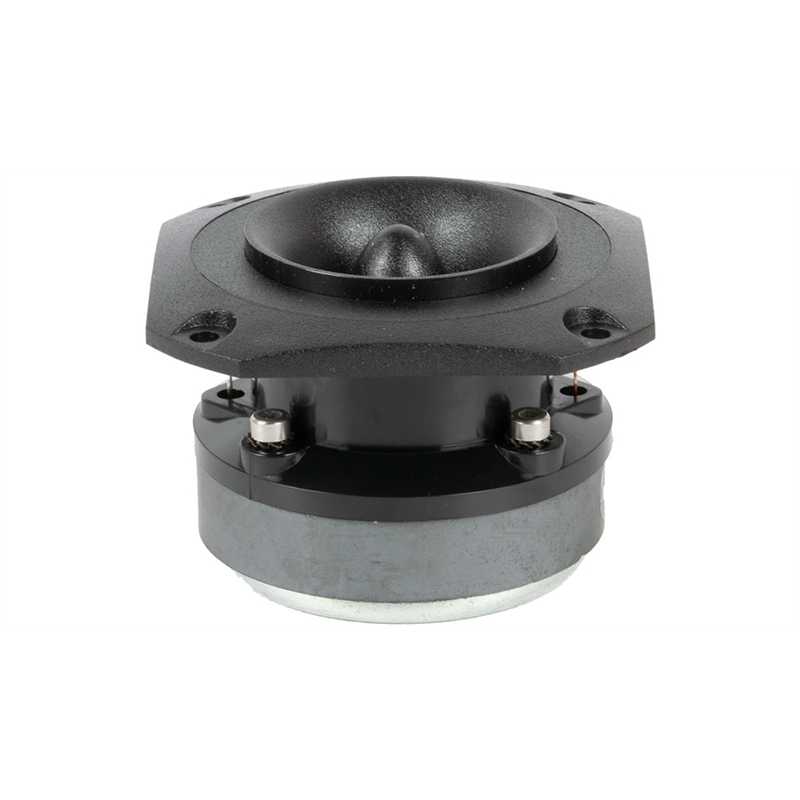

TWEETER BEYMA CP168OHM

"Nominal impedance 8 Ohm Minimum impedance 6.4 ohm @ 3.5 kHz Sensitivity 105 dB 1 W @ 1 m Re 5.4 ohm Frequency range 3000-20000 Hz Power capacity 15 W AES Program power 30 W Recom. crossover frequency 6 kHz or higher (12 dB/oct. min slope) Dispersion HxV 40º conical Voice coil diameter 25.4 mm 1 in Flux density 1.45 T BL factor 4 N/A Diaphragm material Aluminium CONSTRUCTION DETAILS External diameter 86x86 mm 3.38x3.38 in Depth 65 mm 2.56 in Cutout diameter ø 75 mm 3 in Bolt circle diameter 92 mm 3.62 in Net weight 0.75 kg 1.65 lb Total weight 0.8 kg 1.76 lb Magnet Ferrite"
